मैग्नीशियम मिश्र धातु मरो कास्टिंग मशीन
Created with Pixso.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine

ब्रांड नाम: EMT
मॉडल संख्या: MG-1500
एमओक्यू: 1
विस्तृत जानकारी
Place of Origin:
China
प्रमाणन:
ISO9001,IATF16949
Product Type:
Injection Molding Machine
Oem:
Yes
Operational:
safety
Technology:
Thixomolding
Power Supply:
AC 380V, 50Hz
Die Height:
500-1400mm
Power Source:
Electric
Injection Pressure:
100 MPa
Casting Method:
Die Casting
Material Compatibility:
Magnesium Alloys
Mold Locking Force:
15000kN
Control System:
PLC
Operate:
simple
Operating System:
Touch screen or computer
Warranty:
1 Year
Forming Process:
Semi-solid thixoforming
Energy Saving:
Yes
प्रमुखता देना:

high-precision magnesium alloy molding machine

,

magnesium alloy die casting machine for aerospace

,

3C industry magnesium alloy molding solution

उत्पाद वर्णन
EMT MG-1500 The Ultimate Solution for High-Precision Magnesium Alloy Molding in New Energy Aerospace and 3C Industries

No. DESCRIPTION UNIT MG1500
1 Mold Locking Force kN 15000
2 Way Of Mold Installation - T-groove way
3 Screw Diameter mm 130
4 Injection Nozzle Inlet mm 150
5 Injection Nozzle Contact Force kN 800
6 Systematic Operating Pressure MPa 16
7 Melting Servo Motor Power kW 80
8 Machine’s Overall Dimension (L×W×H) m 14×6.4×4.5

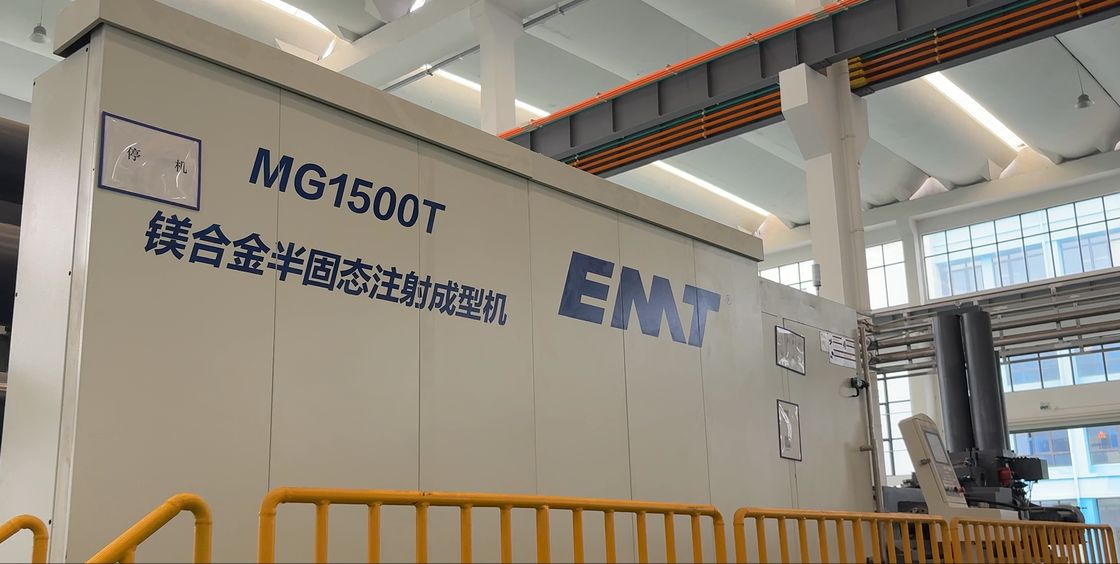

The EMT MG-1500 Magnesium Alloy Semi - Solid Injection Molding Machine is a high - performance core equipment independently developed by EMT. Precisely designed for the magnesium alloy semi - solid injection molding process, it is widely suitable for the production needs of high - precision and high - quality magnesium alloy products such as key automotive components, high - end electronic product casings, and aerospace precision components.
EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 0



Integrating cutting - edge technology and innovative design concepts, this equipment is based on safety and stability, and also has significant advantages such as environmental protection and low consumption, high - efficiency output, and precision molding. It provides customers with reliable production solutions from research and development to mass production, helping to enhance product competitiveness.



Service industry:

  • 3C Electronics: laptop casing, game console casing, mouse, keyboard, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 1

  • New energy vehicles: steering wheel, seat frame, cup holder, armrest bracket, central control instrument panel, battery pack housing, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 2

  • Outdoor equipment: bicycle frame, electric bicycle shell, photography equipment shell, night vision device shell, fishing wheel, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 3

  • Medical field: surgical instruments, medical equipment, etc.

EMT MG-1500 15000kN Magnesium Alloy Die Casting Machine 4

  • Other fields: Other magnesium alloy lightweight products besides the four major fields mentioned above.
